Oxy fuel Cutting Beam Welding Line / Heavy Duty Welding Machine

Quick Details

• All of our CNC cutting machines can be equipped with oxy-fuel and/or plasma cutting equipment;
• American Hypertherm, American Thermadyne, Germany Kemper and domestic plasma sources for options;
• Capacitive height controller and auto-igniter for flame torch; arc-voltage height controller for plasma torc;
• Australia FASTCAM auto programming and nesting software;

1. Introduction

CNC-CG series is our standard cutting machine which not only can cut different profiles/shapes but also can cut strip/straight plate. The multi-head strip torches are used for straight plate cutting as web and flange of H-beam. It can cut in batch with high performance and efficiency. If customer doesn’t need CNC function, only multi-head flame cutting machine can be designed too.

We also provide user-friendly broad choices and options that allow you to configure your CNC cutting system with the capacities, speed and accuracy of your needs.

2. Main Parameters

3. Main features

The standard models of our CNC flame/strip oxy-fuel cutting machines have the following features:

• Robust all steel fabrication with stable structure and good rigidity, and no deformation after long time using;
• Micro-step SH-2200AH CNC system;
• Single side gear and rack driving;
• Capacitive height controller and auto-igniter;
• Australia FASTCAM auto programming and nesting software;
• Both longitudinal and transverse drives adopt Japan Panasonic high precision A.C. servo motor, Germany NEGUART high precision gear reducer and high precision gear and rack.
• The brushless AC servo motor has high torque, high resolution and high inertia.
• Longitudinal rail is fine machining rail. Rack material is 45# steel, fixed in rail by bolt in sections.
• Advanced PC-Based CNC controller with faster processing speed & greater accuracy improves productivity. This CNC controller features a Windows operating system and colored LCD screen.
• Germany IGUS transverse drag chain;
• Limit switch for gantry travel;
• Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before painting;
• High intensive heat-resisting gas supply pipe;
• Backfire arrester and solenoid for cutting oxygen for torch;
• All motion parts have lubrication system;
• Main electric elements are ABB/Siemens brands;
• Hand pendant;
• Lifting lug;
• Standard color:

Optional features:

• American HYPERTHERM edge Pro CNC system;
• Spanish FAGOR CNC system;
• American BURNY 10LCD plus;
• Triple torch for X, Y, V&K type bevel;
• Powder spray marking function;

4. Reference drawing

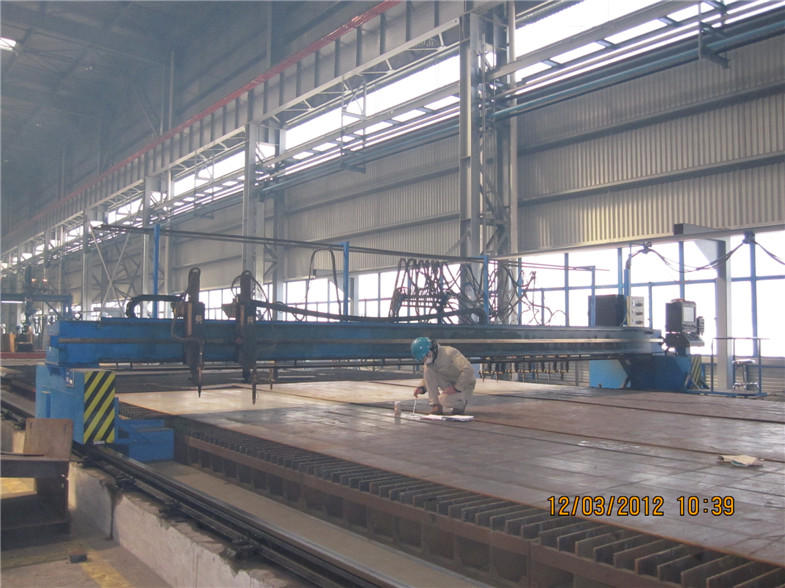

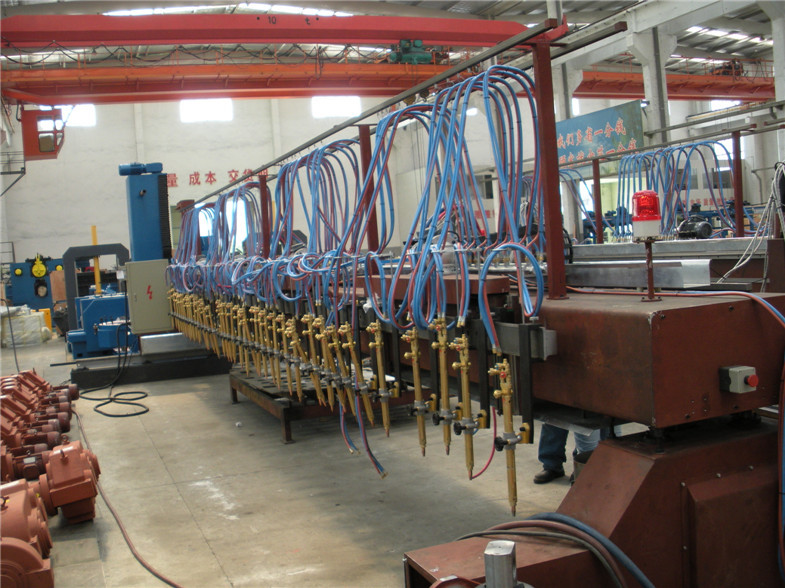

5. Reference photo

6. Comparative advantage

• ISO9000&CE certified;
• Professional and experienced engineer team to ensure the advanced design about structure and electric;
• Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality;
• Professional and experienced after sale service team to guarantee quick and satisfied installation, commissioning or service;
• Optimum materials and outsourcings to ensure the best performance;
• Commissioning and testing before delivery;
• Factory inspection is encouraged;

Weldsuccess product designs combine accuracy, speed, flexibility, durability, reliability and advanced technology to deliver machines with the highest performance-to-price ratio in the industry with CE certificates.

Weldsuccess attend the International Fair every year, like the Germany Essen,USA Fabtech and some other international local welding fair.

And since 2012, we focuses on the international market only. The welding positioners, welding rollers and welding column boom have been exported to more than 40 countries.

We are looking forwards to the cooperation with you soon!
