    Baffle Assembling Box Beam Welding Machine MIG / CO2 Welding

    Ask Lasest Price
    Brand Name : weldsuccess
    Model Number : GZ-12
    Certification : CE
    Price : 1800USD
    Supply Ability : 10sets/months
    Delivery Time : 15working days
    • Product Details
    • Company Profile

    Baffle Assembling Box Beam Welding Machine MIG / CO2 Welding

    Baffle Assembling Machine for Box Column Production Line


    Workflow for Fully Box Column Production Line


    1. Main Parameters


    ModelGZ12GZ15
    Suitable work-piece size (mm)300—1200300—1500
    Work-piece thickness (mm)≦80≦80
    Tilt speed (rpm)11
    Worktable load capacity (kg)15001500
    Rotation center height (mm)10001200
    Worktable tilt angle (°)±180°
    Power supplyAC380V, 50HZ, 3P or tailor made
    Above are GUOHENG standard models and parameters, and it can be designed and manufactured on request.
    *We reserve the right to alter specifications without prior notice.

    2. Introduction

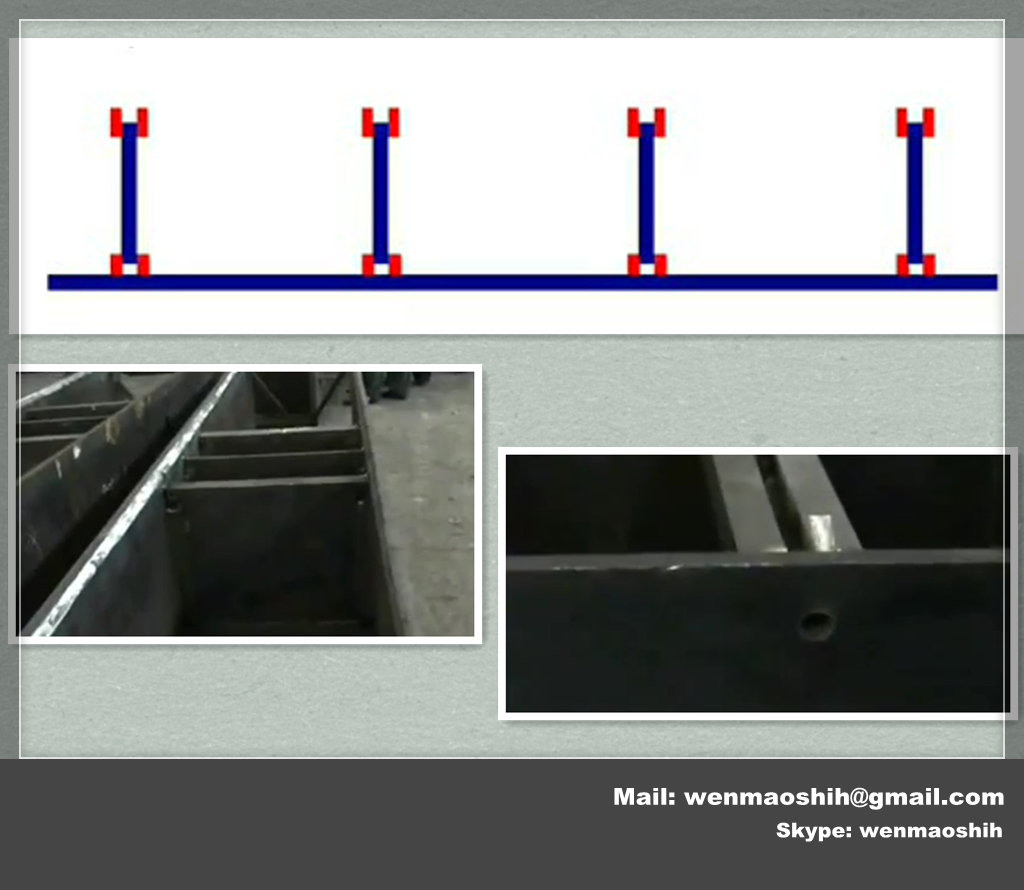

    According to box beam welding technologies, electro-slag welding is required. The baffle plate has holes for electro-slag welding. This baffle assembling machine is auxiliary equipment and improves the baffle assembling efficiency greatly.


    The baffle assembly machine adopts gas cylinder to clamp and positioning, and then tack welding or full welding. It can ensure the accurate positioning of box-beam baffle assembly and prevent the box-beam deformation during welding.


    3. Reference Photos





    Quality Baffle Assembling Box Beam Welding Machine MIG / CO2 Welding for sale
