Column Welding Boom Manipulator with Panasonic MIG Welding System

Quick Details

• Medium duty type with boom end load up to 120KG;
• There three type of structures: motorized rotation and motorized moving;
• Motorized cross slider 100*100mm fine adjustment stroke to welding gun;
• ±180° degree column rotation with manual locking at any position;
• Column and Boom Manipulators can realize automatic welding incorporate with SAW, MAG and TIG welding systems;
• Extensively applied in pressure vessel, metallurgy, power, chemical industry, wind tower, piping system and others lines

1. Introduction

Welding column&Boom Manipulators of Guoheng stands out not only for innovation in design and quality of manufacture, but also for reliability and robustness. It can realize automatic welding incorporate with SAW, MAG and TIG welding systems, and extensively applied in pressure vessel, metallurgy, power, chemical industry, wind tower, piping system and others lines.

According to boom end load capacity, it is divided into light duty (LHQ), medium duty (LHZ), heavy duty (LHW) and ultra heavy duty (HCJ).

Below are the main parameters of our medium duty welding column&boom manipulator. We also provide tailor-made welding column&boom manipulators according to your special requirements.

2. Main Parameters

3. Main features

The standard models of our welding column&boom manipulators have the following features:

• Robust all steel fabrication;
• ±180° degree column rotation with manual locking at any position;
• Variable speed boom controlled by inverter;
• Boom elevation through geared motor rack and pinion drive with brake;
• Elevation and traverse drive mounted on saddle providing for easy access servicing and maintenance;
• Machines fully counter balanced by column internal weight, connected to the saddle by heavy duty chain;
• Anti-fall device offers safety feature;
• Extra wide rollers and unique slideways ensure minimum deflection traversing;
• Innovative machined “rectangle” ways to column ensure that the boom saddle moves smoothly with no vibration. This reduces wear and tear.
• Motorized cross slider unit to ease the welding head adjustment;
• There is safe ladder behind the column for maintenance of equipment;
• Limit switch for both boom travel and lift;
• Sand blasting treatment to main welding parts before painting;
• All motion parts have lubrication system;
• Main electric elements are ABB/Siemens brands;
• Hand pendant;
• Lifting lug on top of column;
• Standard color:

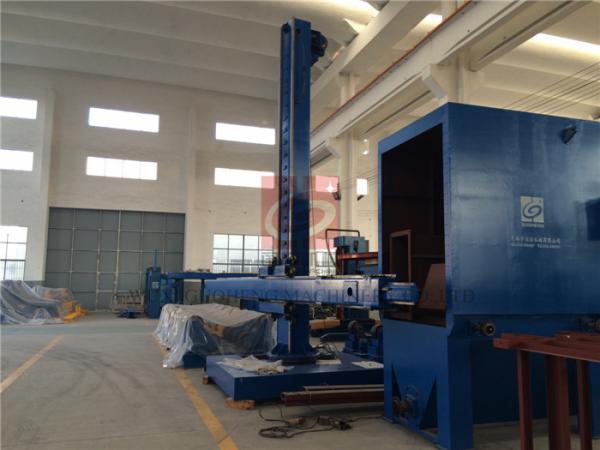

4. Reference photos

Weldsuccess product designs combine accuracy, speed, flexibility, durability, reliability and advanced technology to deliver machines with the highest performance-to-price ratio in the industry with CE certificates.

Weldsuccess attend the International Fair every year, like the Germany Essen,USA Fabtech and some other international local welding fair.

And since 2012, we focuses on the international market only. The welding positioners, welding rollers and welding column boom have been exported to more than 40 countries.

We are looking forwards to the cooperation with you soon!
