Single Phase Auto Wind Tower Production Line Oxy - fuel Cutting Machine

Quick Details

• This CNC flame cutting machine is specially used for wind tower plate cutting;
• 2groups of CNC torch;
• Both longitudinal and transverse drives adopt Japan Panasonic high precision A.C. servo motor, Germany NEGUART high precision gear reducer and high precision gear and rack.
• Longitudinal rail is fine machining rail. Rack material is 45# steel, fixed in rail by bolt in sections;
• Australia FASTCAM auto programming and nesting software;

1. Introduction

Developed and designed in-house and tested in practice, we have produced a series of cutting machines and cutting lines that will be regarded as industry leading since 2003. All of our CNC cutting machines can be equipped with oxy-fuel and/or plasma cutting equipment.

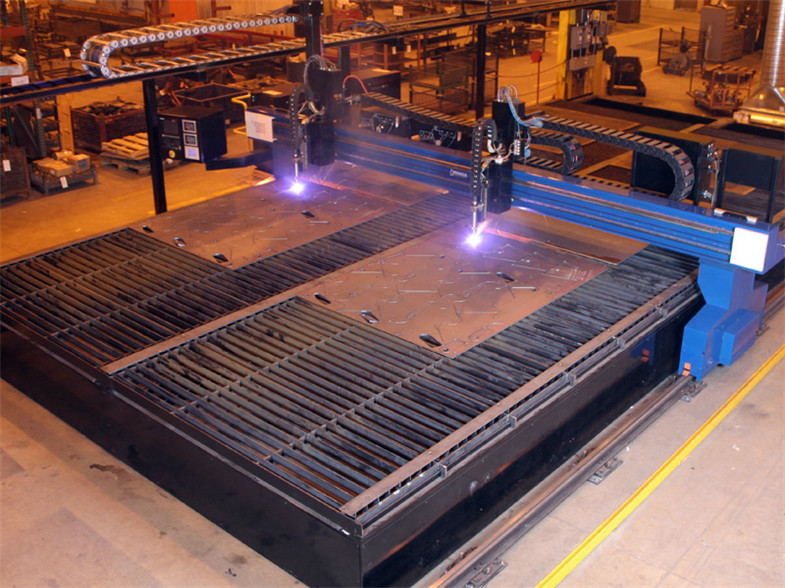

CNC flame cutting machine only has CNC flame torch which is specially used for wind mill plate cutting with high performance and efficiency.

2. Main Parameters

3. Main features

The standard models of our CNC flame oxy-fuel cutting machines have the following features:

• Robust all steel fabrication with stable structure and good rigidity, and no deformation after long time using;
• Micro-step SH-2200AH CNC system;
• Single side gear and rack driving;
• Capacitive height controller and auto-igniter;
• Australia FASTCAM auto programming and nesting software;
• Both longitudinal and transverse drives adopt Japan Panasonic high precision A.C. servo motor, Germany NEGUART high precision gear reducer and high precision gear and rack.
• The brushless AC servo motor has high torque, high resolution and high inertia.
• Longitudinal rail is fine machining rail. Rack material is 45# steel, fixed in rail by bolt in sections.
• Advanced PC-Based CNC controller with faster processing speed & greater accuracy improves productivity. This CNC controller features a Windows operating system and colored LCD screen.
• Germany IGUS transverse drag chain;
• Limit switch for gantry travel;
• Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before painting;
• High intensive heat-resisting gas supply pipe;
• Backfire arrester and solenoid for cutting oxygen for torch;
• All motion parts have lubrication system;
• Main electric elements are ABB/Siemens brands;
• Hand pendant;
• Lifting lug;
• Standard color:

Optional features:

• American HYPERTHERM edge Pro CNC system;
• Spanish FAGOR CNC system;
• American BURNY 10LCD plus;
• Powder spray marking function;

4. Reference drawing

5. Reference photo

6. Comparative advantage

• ISO9000&CE certified;
• Professional and experienced engineer team to ensure the advanced design about structure and electric;
• Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality;
• Professional and experienced after sale service team to guarantee quick and satisfied installation, commissioning or service;
• Optimum materials and outsourcings to ensure the best performance;
• Commissioning and testing before delivery;
• Factory inspection is encouraged;

Weldsuccess product designs combine accuracy, speed, flexibility, durability, reliability and advanced technology to deliver machines with the highest performance-to-price ratio in the industry with CE certificates.

Weldsuccess attend the International Fair every year, like the Germany Essen,USA Fabtech and some other international local welding fair.

And since 2012, we focuses on the international market only. The welding positioners, welding rollers and welding column boom have been exported to more than 40 countries.

We are looking forwards to the cooperation with you soon!
