U Beam Electron Beam Welding Process with Hydraulic System

1. Introduction

This machine is used for the assembly of U-beam&Box-beam. Place the plates on the bracket with auxiliary centering device. Motor drives gantry to travel; and the upper press cylinder and side press cylinder press the plates to finish the assembly and tack welding.

2. Main Parameters

3. Working principle

The machine is mainly used for U-beam and box-beam assembly during production of U- beam/box-beam bay. Work-piece is put on the conveyor with assistant alignment unit. Motor drives gantry into working area. With down-stroke cylinder and side-stroke cylinder on the travel gantry, the web and flange of work-piece are pressed, and spot-welded will be performed on the pressed section. Via travel of gantry, manual spot-weld is carried out along the whole length of work-piece.

4. Main features

The standard models of our U-beam&Box-beam assembly machines have the following features:

• Gantry is the main body of machine. All the clamping devices are arranged on the gantry.
• Two motors via worm and gear reducer to drive two wheels travel along the rail.
• Rail is 38KG/m heavy duty rail.
• All motion parts have lubrication system;
• Main electric elements are ABB/Siemens/Schneider brands;

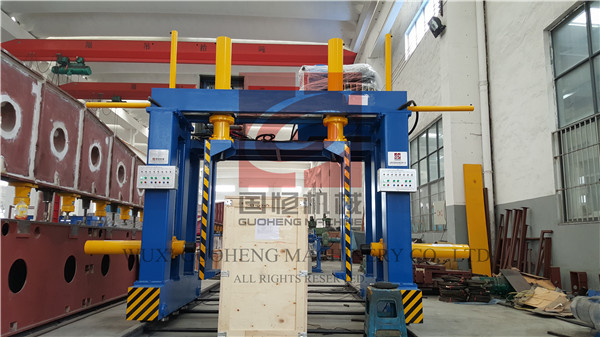

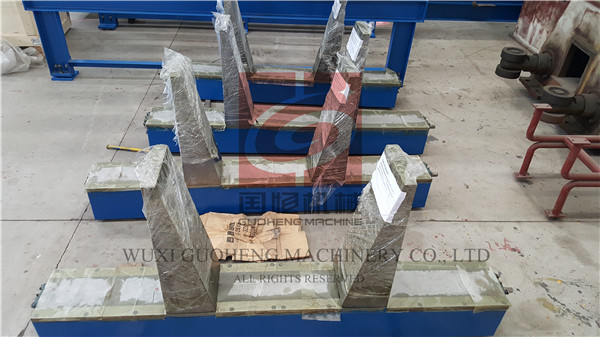

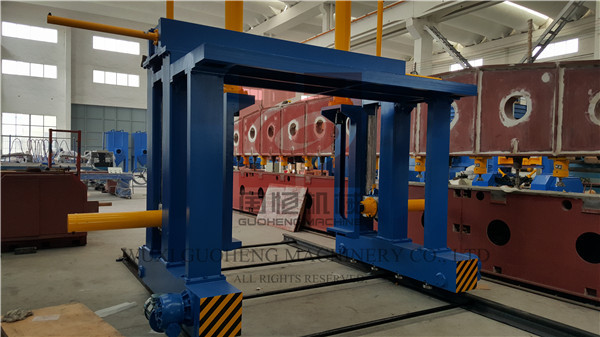

5. Reference Photos

Weldsuccess product designs combine accuracy, speed, flexibility, durability, reliability and advanced technology to deliver machines with the highest performance-to-price ratio in the industry with CE certificates.

Weldsuccess attend the International Fair every year, like the Germany Essen,USA Fabtech and some other international local welding fair.

And since 2012, we focuses on the international market only. The welding positioners, welding rollers and welding column boom have been exported to more than 40 countries.

We are looking forwards to the cooperation with you soon!
