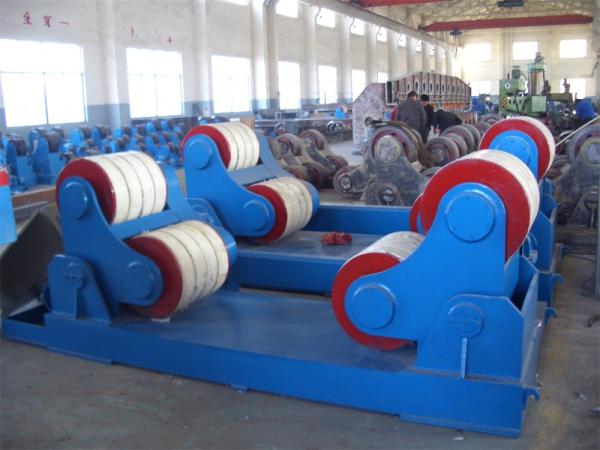

100mm/Min 10T Vessel Turning Rolls , Boiler Self Aligning Welding Rotator

Standard 10T Pressure Vessel Vessel Turning Rolls / Pipe Rotators For Welding

Self-aligning Welding Turning Rolls Introduction:

This series is self-alignment/self centering type. Our welding roller beds designed for maximum workpiece loads from 5T to 60T are used for the rotation and positioning of heavy, rotationally symmetrical workpieces like tanks, pipes or boilers for further machining or welding. We also provide tailor-made welding rotator according to your special requirements.

Specifications

Model		HGZ5	HGZ10	HGZ20	HGZ40
Max loading T		5	10	20	40
Suit diameter mm	Min	250	320	500	600
Suit diameter mm	Max	2300	2800	3500	4200
Rubber Roller mm	Dia	250	300	350	400
Rubber Roller mm	Width	100	120	120	120
Metallic roller mm	Dia	244	294	344	394
Metallic roller mm	Width	20	25	30	40
Linear speed m/h		6--60
Speed Control		VFD
Motor power kW		0.75	1.1	1.5	3
Roller distance mm		900	1100	1350	1600
Above are our standard models and parameters, and it can be designed and manufactured on request.

welding turning rolls of features

The standard models of our roller beds have the following features:

Steplessly controllable rotary drives by means of A.C. motor drive via self-locking worm gear reducers;
Schneider inverter to realize VFD speed control and synchronous rotation of rollers;
Roller distance is self-aligned and roller surrounding angle among 45°～110°;
All motion parts have lubrication system;
Hand pendant with Forward-Stop-Reverse and speed potentiometer are standard;
Lifting lug on the base of roller bed;
