Automatic Tilting Rotary Welding Positioners 5000KG - 20000KG

Quick Details

• Conventional rotary welding positioners have universal applications in the manual and automatic welding of circumferential seams and in the accurate positioning of work-pieces;
• Free standing, robust all steel fabrication;
• Fully machined turntable of various sizes with centering grooves and T-slots;
• Main electric elements are ABB/Siemens brands;
• Hand pendant with Forward&Reverse Rotation, Tilt UP&DOWN, and speed potentiometer are standard;

1. Introduction

Conventional rotary welding positioners are designed for maximum loads of 5,000KG to 20,000KG have universal applications in the manual and automatic welding of circumferential seams and in the accurate positioning of work-pieces, and extensively applied in pressure vessel, metallurgy, power, chemical industry, metal structure and others lines.

We also provide tailor-made rotary welding positioners according to your special requirements.

2. Main Parameters

*We reserve the right to alter specifications without prior notice.

3. Main features

The standard models of our conventional rotary welding positioners have the following features:

• Free standing, robust all steel fabrication;
• Variable speed table rotation controlled by inverter;
• Motor with brake;
• Fully machined turntable of various sizes with centering grooves and T-slots;
• Sand blasting treatment to main welding parts before painting;
• All motion parts have lubrication system;
• Main electric elements are ABB/Siemens brands;
• Hand pendant with Forward&Reverse Rotation, Tilt UP&DOWN, and speed potentiometer are standard;
• Efficient built-in earthing;
• Lifting lug on the base of roller bed;
• Standard color:

Optional features:

• Square worktable;
• Extension arms;
• Extensive system accessories such as three-jaw chucks;
• Foot switch;
• Interface for integral control with welding column&boom;

4. Supply range

• Welding positioner (including machine frame, worktable, etc) 1set
• Electric control system (including 1piece of electric control cabinet, 1piece of remote control box and foot pedal with cable 6m] 1set
• Technical documents (with manual book, conformity certificate, packing list, etc) 1set

5. Reference drawing

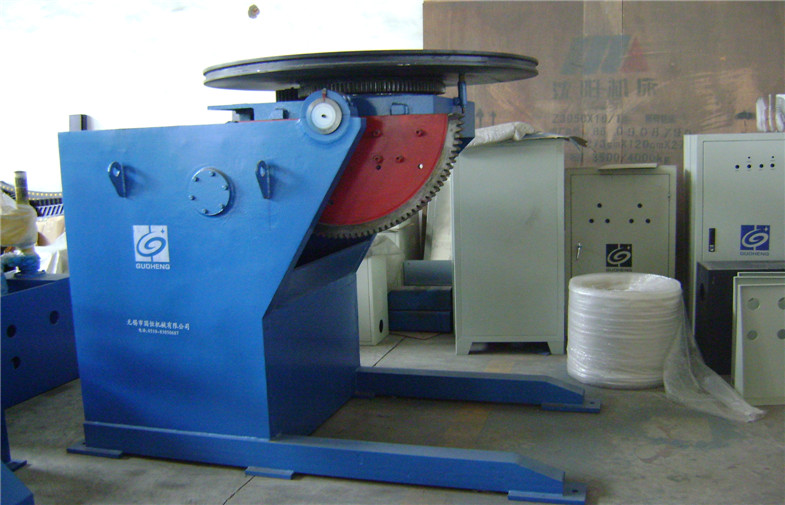

6. Reference photo

7. Comparative advantage

• ISO9000&CE certified;
• Professional and experienced engineer team to ensure the advanced design about structure and electric;
• Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality;
• Professional and experienced after sale service team to guarantee quick and satisfied installation, commissioning or service;
• Optimum materials and outsourcings to ensure the best performance;
• Commissioning and testing before delivery;
• Factory inspection is encouraged;

Weldsuccess product designs combine accuracy, speed, flexibility, durability, reliability and advanced technology to deliver machines with the highest performance-to-price ratio in the industry with CE certificates.

Weldsuccess attend the International Fair every year, like the Germany Essen,USA Fabtech and some other international local welding fair.

And since 2012, we focuses on the international market only. The welding positioners, welding rollers and welding column boom have been exported to more than 40 countries.

We are looking forwards to the cooperation with you soon!
